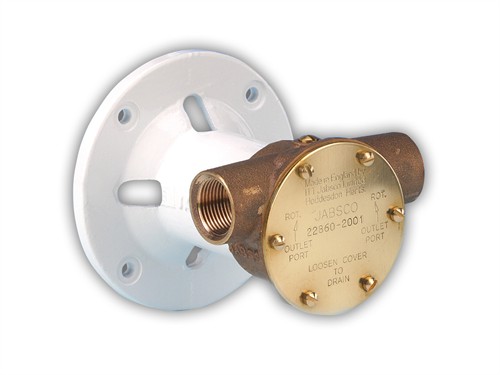

JABSCO 22860-2001 PUMP HEAD KIT 3/4" BSPF PORTS
To fit IEC 71 standard D80 frame motor
Connections: 3/4" BSP ports
Dimensions: Pump head 118mm long, 105mm wide
Output: up to 35 litres/minute at 3m head @ 1500rpm
Bronze and Stainless Steel construction suitable for seawater
Carbon/ceramic mechanical seal, neoprene impeller
Self primes from dry up to 3m.
Non pulsating flow.
Gentle pump action does not damage shear-sensitive products.
Liquid temperatures from 4ºC to 82ºC
Motorised units in 110v, 230v or 400v available

PRODUCT DATA SHEET
