24/12-3 MASTERVOLT MASTER CONVERTER DC-DC (ISOLATED)

24/12-3 MASTERVOLT MASTER CONVERTER DC-DC (ISOLATED)

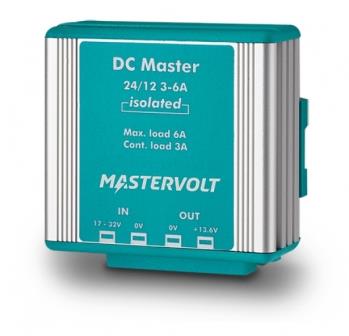

Mastervolt 24/12-3 Master Converter ( Isolated )

General Specifications
Nominal output voltage 13.6 V
Max. output power 82 W
Nominal output power 41 W
Max. output current (for 2 min. intervals) 6 A
Continuous output current 3 A
Nominal input voltage 24 V
Input voltage range (max.) 20-32 V DC (35 V)
Galvanic isolation yes
Stabilised yes
Dimensions, hxwxd 89 x 87 x 50 mm
3.5 x 3.4 x 2.0 inch
Weight 0.29 kg
0.6 lb
Approvals CE, E-mark

Our price (Ex VAT) £64.87

PART NUMBER 81500100


Description
