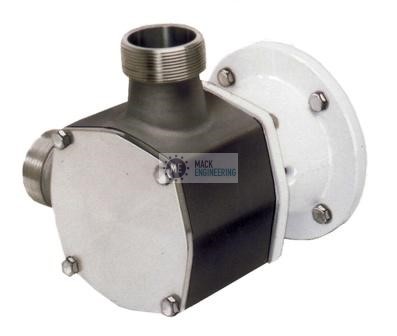

28540-2101 JABSCO S370 INDUSTRIAL PUMP HEAD KIT

BEFORE ORDERING !! PLEASE CHECK AVAILABILITY
S370 'Industrial' Flexible Impeller Pump Head Kit
2" BSP Inlet / Outlet Ports
Max Flow Rate Approx 330LPM @ 3M Head , 1500RPM
Max Diff Pressure 1 BAR
Self-priming up to 5m

To fit IEC 71 standard D100 frame motor.
AISI 316 stainless steel wetted parts, with neoprene impeller, nitrile seal trim.

Our price (Ex VAT) £1858.00

PART NUMBER

28540-2101

Ask a question about this product

Quantity

view more products by

Description

Dimensions: approx. 193mm long, 140mm wide, 160mm high
Chemical resistant 316 stainless steel parts
Long-life mechanical shaft seal
Widely used for Abrasive suspensions and slurries, Soaps and foaming solutions, Inks, dyes and paints, Viscous adhesives.
Suitable for Transfer, Filling & Emptying, Recirculating/Mixing, Injection or Sampling duties
Can handle soft or hard solids
Viscosities up to 50,000 cP
