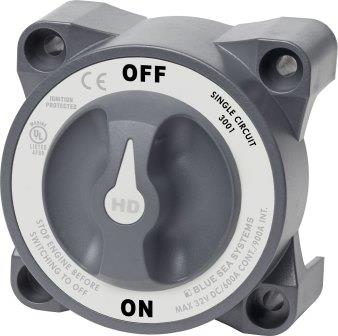

3001 BLUE SEA HD BATTERY SWITCH ON/OFF

3001 BLUE SEA HD BATTERY SWITCH ON/OFF

Blue Sea HD On/Off Battery Switch, with AFD


Specifications
Switch Type  Single Circuit ON-OFF
Color Grey
Switch Positions 2
Battery Combine No
Alternator Field Disconnect  Yes
Maximum Voltage 32V DC
Terminal Stud Torque 220 in-lb (24.86 Nm)
Continuous Rating  600A
Intermittent Rating  900A (5 min)
Cranking Rating 30 sec  1750A
Battery Inputs 1
Cable Clearance For 4/0 AWG Cables 1.10in (27.94 mm)
Cable Quantity to Meet Ratings Two Cables
Cable Size to Meet Ratings 4/0 AWG (120mm²)
Mounting Holes Accept 1/4" (M6) Screw
Stud Material Tinned Copper
Terminal Stud Size 1/2" (M12)
Weight 1.30lb (0.59 kg)



Our price (Ex VAT) £100.50

PART NUMBER 8-23001
