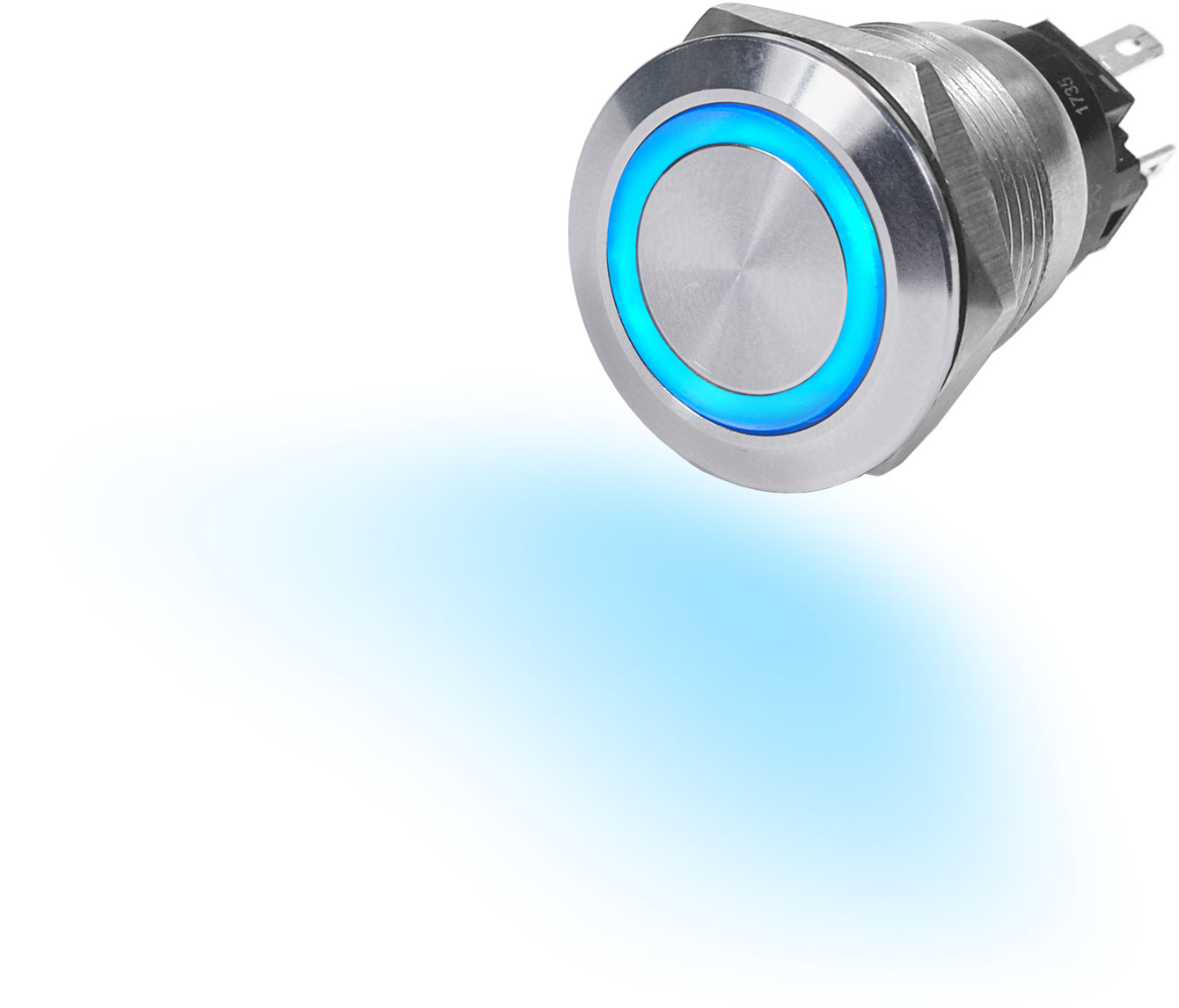

4161 BLUE SEA LED PUSH BUTTON RING SWITCH (BLUE) 10A

Blue Sea Push Button Ring Switch 10A ( BLUE )

Specifications
Action	OFF-(ON)
Amperage	10A @ 12V DC Resistive 3A @ 12V Inductive
Nominal Voltage	12V DC
Maximum LED Operating Current	20mA
Minimum Operating Temperature	-30° C
Maximum Operating Temperature	70° C
Minimum Storage Temperature	-55° C
Maximum Storage Temperature	85° C
Illumination	Independent – Separate contacts for LED power
Max Panel Thickness	0.31in (7.87 mm)
Mounting Hole	¾” (19mm)
Switching Cycles	40,000
Termination	5 – 0.110inch Quick Connect terminals
Weight	0.20lb (0.09 kg)
