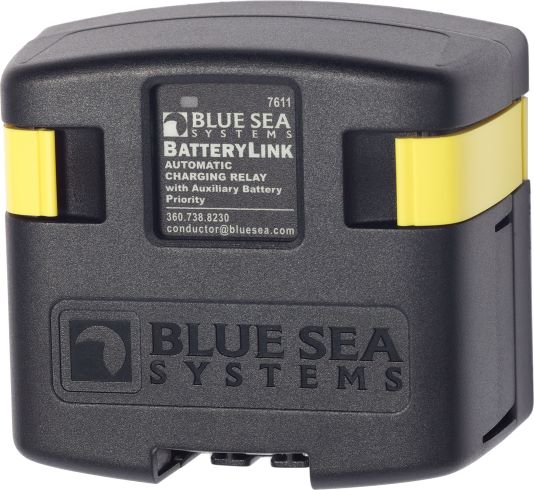

7611 BLUE SEA AUTO CHARGE RELAY 12V/24V DC 120A

7611 BLUE SEA AUTO CHARGE RELAY 12V/24V DC 120A

Blue Sea Auto Charge Relay


Specifications
Nominal Voltage 12V DC
24V DC
Auxiliary Battery Priority  Yes
Amperage Operating Current 175mA @ 12V (Combine)
115mA @ 24V (Combine)
15mA (Open)
Continuous Rating  120A
Intermittent Rating  210A (5 min)
Maximum Cable Size 1/0 AWG
Maximum Torque 140 in-lb (15.82 Nm)
Stud Material Tinned Copper
Terminal Stud Size 3/8" - 16 (M10)

Our price (Ex VAT) £105.00

PART NUMBER 8-27611


Description

Relay Contact Position
Combine 30 sec 13.6V @ 12V
27.2V @ 24V
Combine 2 Min 13.0V @ 12V DC
26.0V @ 24V DC
Over Voltage Lockout 16.0V @ 12 V
32.0V @ 24 V
Open Low 12.75V @ 12 V
25.5V @ 24 V
Auxiliary Priority
Open Low 12.25V @ 12V
24.5V @ 24V
Weight 1.25lb (0.57 kg)
