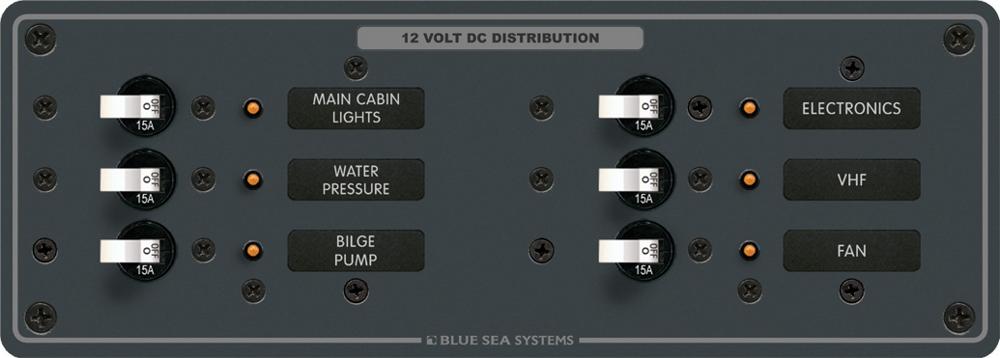

8096 BLUE SEA PANEL DC 6 POSITION HORIZONTAL CE

8096 BLUE SEA PANEL DC 6 POSITION HORIZONTAL CE

PLEASE CHECK AVAILABILITY  BEFORE  ORDERING

Blue Sea 6 POSITION METAL Panel, DC Voltage
HORIZONTAL (CE)
All positive, negative and grounding buses installed, fully pre-wired
Panels with meters include toggle switch for mounting up to 3 battery banks
All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
All circuit label positions are backlit on standard panels - No kit required
"ON" indicating LEDs installed in all circuit positions



Our price (Ex VAT) £311.00

PART NUMBER 8-28096
Ask a question about this product

Description

Blue Sea 6 POSITION METAL Panel, DC Voltage
HORIZONTAL (CE)
All positive, negative and grounding buses installed, fully pre-wired
Panels with meters include toggle switch for mounting up to 3 battery banks
All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
All circuit label positions are backlit on standard panels - No kit required
"ON" indicating LEDs installed in all circuit positions

Positions 6
Installed Single Pole Circuit Breakers 6 (15A)
Voltage 12 or 24 Volts DC
Width in" (mm) 10.50 (266.70)
Height in" (mm) 3.75 (95.25)
Weight Lb (Kg) 2.25 (1.02)
