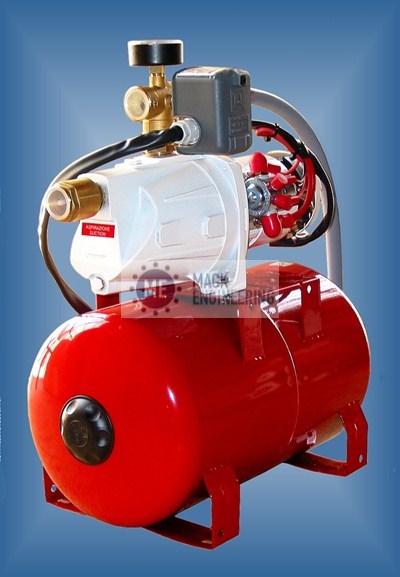

AQM6-24 WATER PRESSURE SYSTEM 24V

AQM6-24 WATER PRESSURE SYSTEM 24V

CHECK AVAILABILITY BEFORE ORDERING

AQM6-24 Water Pressure System 24v DC
Connections 1" Inlet & Outlet
Hep20 HX31/28 connector for
28mm (1") push-fit pipework
Max Flow Rate 55LPM (12GPM)
Cuts in at 1.4bar (20psi)
Cuts out at 2bar (30psi)

Our price (Ex VAT) £1973.00

PART NUMBER AQM6-24


Description

CHECK AVAILABILITY BEFORE ORDERING

AQM6-24 Water Pressure System 24v DC
Connections 1" Inlet & Outlet
Hep20 HX31/28 connector for
28mm (1") push-fit pipework
Max Flow Rate 55LPM (12GPM)
Cuts in at 1.4bar (20psi)
Cuts out at 2bar (30psi)
Dimensions 570mm long, 260mm wide, 570mm high
Fuse Size: - 25 amp
For heavy use in larger vessels.
Serves up to 12 outlets
Complete self-priming pressure system with 20 litre accumulator tank (membrane type),
Heavy-duty adjustable pressure switch and pressure gauge
Bronze pump body, suitable for use with fresh or salt water
Quiet running Use 1" inlet strainer
