JABSCO PARMAX HD4 PRESSURE CONTROLLED PUMP 24V 40PSI

JABSCO PARMAX HD4 PRESSURE CONTROLLED PUMP 24V 40PSI

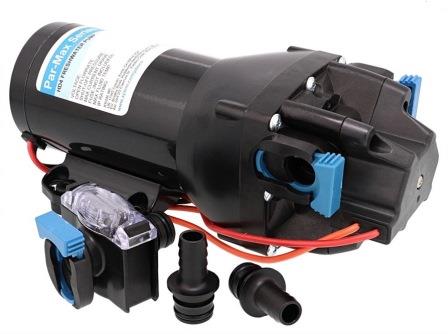

Parmax HD4 Pressure Controlled Pump 24V ( High Pressure 40psi )
Connections: ONLY for 13mm (½”) bore hose
Dimensions: 239mm long, 109mm wide, 97mm high
Fuse Size: 10(amp)
Output: 16 litres/minute (3.5 gallons/minute) open flow
PRESSURE SWITCH - Cuts In at 1.4bar (20psi) - Cuts Out at 2.8bar (40psi)
Supplied with snap-in ports for hose 1/2" (13mm) ID Hose and Strainer
Efficient, high-flow, self-priming pump serving 4 or more outlets
Multi-diaphragm design self primes to 1.5m vertical lift, can run dry without damage
Motor protected by automatic thermal overload cut-out.


PLEASE NOTE !!
IF REPLACING AN OLD PARMAX PUMP !!
THERE IS A CHANGE IN THE WIRING GAUGE MINIMUM BORE GAUGE  PER DISTANCE OF WIRE RUN.. AS FOLLOWS:
1.8M - 3M ....2.5mm BORE
3M - 4.6M.....4.0mm BORE
4.6M - 5.5M...6.0mm BORE





Our price (Ex VAT) £192.07

PART NUMBER Q402J-115S-3A
