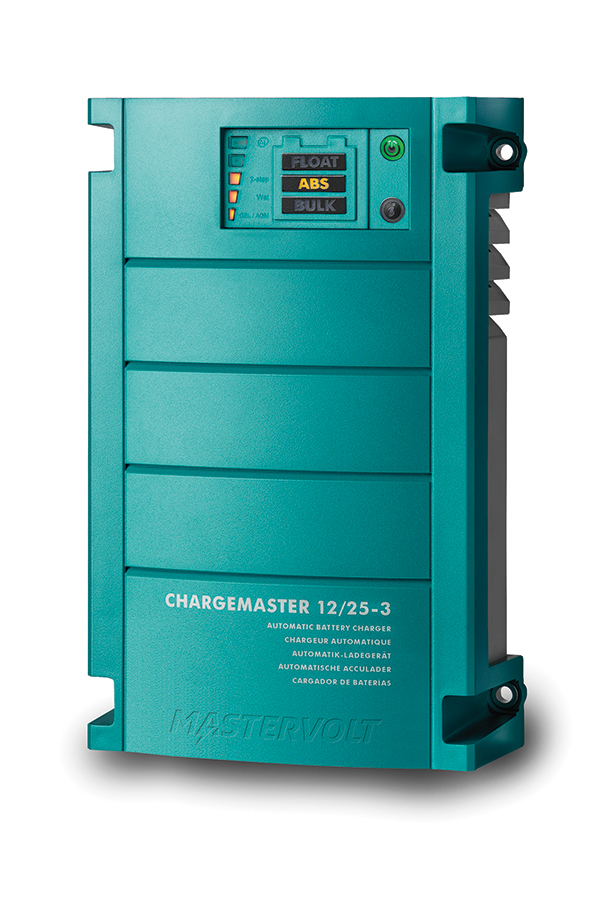

MASTERVOLT CHARGEMASTER 12/25-3 BATTERY CHARGER

MASTERVOLT CHARGEMASTER 12/25-3 BATTERY CHARGER

Mastervolt Chargemaster 12/25-3 Battery Charger

See Below for Product Information

Our price (Ex VAT) £295.36

PART NUMBER M44010250


Description

Mastervolt Chargemaster 12/25-3 Battery Charger


GENERAL SPECIFICATIONS
Nominal output voltage 12 V
Total charge current 25 A
Number of battery outlets 3
Charge current second output 25 A
Charge current third output 25 A
Battery capacity range 50-250 Ah
Nominal input voltage 120/230 V (90-265 V), 50/60 Hz
AC connection 2 mtr AC cable
Supplies your system without battery yes
Display/read-out LED display
Dimensions, hxwxd 234 x 132 x 60 mm
9.2 x 5.2 x 2.4 inch
Weight 1.8 kg
4.0 lb
Fastening 4x screw
Approvals CE, ABYC A-31, SAE J1171/ISO 8846 ignition protected

TECHNICAL SPECIFICATIONS
Charge characteristic IUoUo, automatic 3-step+ for gel/AGM/wet/Lithium Ion
Charge voltage Bulk 14.4 V
Charge voltage Absorption 14.25 V
Absorption time 4 hours
Charge voltage Float (wet batteries) 13.25 V
Charge voltage Float (gel/AGM batteries) 13.8 V
Temperature compensation -30 mV/ °C
-17 mV/ °F
Voltage compensation automatic
Power consumption (DC side) < 2 mA
Full load consumption (230 V AC) 450 W
Current Control function no
Power factor control ≥ 0.98
Temperature range (ambient temp.) -25 °C to 60 °C, derating > 40 °C
-13 to 140 °F
Sound level < 52 dBA at 1 mtr
Protection degree IP23
CSI/DC alarm yes, using a Multipurpose Contact Output (code 77030500)
Protections over temperature, over load, short circuit, high/low battery voltage
Cooling vario fan
MasterBus compatible yes
