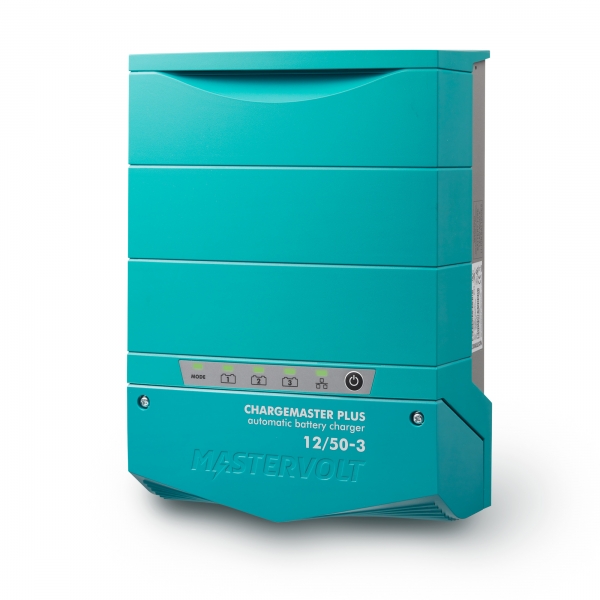

MASTERVOLT CHARGEMASTER PLUS 12/50-3 BATTERY CHARGER

MASTERVOLT CHARGEMASTER PLUS 12/50-3 BATTERY CHARGER

Mastervolt 12/50-3 Chargemaster Plus Battery Charger.
See General Specification Below

Our price (Ex VAT) £617.00

PART NUMBER M44310505
Ask a question about this product

Description

General specifications
Nominal output voltage 12 V
Max. output current primary output 50 A
Total charge current 50 A at 14,25 V
Max. AC current (230 V / 120 V) 3,5 A / 7,1 A
Number of battery outlets 3 (max.)
Battery bank size 200-400 Ah
Nominal input voltage 120/240 V (80-275 V) 50/60 Hz
Power supply mode yes
Galvanic isolation yes
Display/read-out LED display
Dimensions, hxwxd 291 x 210 x 105 mm
11.5 x 8.3 x 4.1 inch
Weight 2.5 kg
5.5 lb
Compliance CE, CEC, DOE, ABYC, UL1236, cULus, SAE J1171, ISO 8846, ACMA
