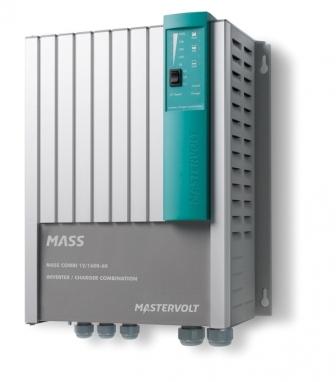

MASTERVOLT MASS COMBI 12/1600-60 INV/CHARGER with INTERFACE

MASTERVOLT MASS COMBI 12/1600-60 INV/CHARGER 230v
Comes with INTERFACE

See below for Product Specification

Our price (Ex VAT) £1431.70

PART NUMBER

M36011602

Ask a question about this product

Quantity

Description

MASTERVOLT MASS COMBI 12/1600-60 INV/CHARGER 230v
Comes with INTERFACE


Specifications Sine Wave Inverter
Nominal DC voltage	12 V (10-15 V)
Output voltage	230 V (± 5 %), adjustable 180-250 V
Output frequency	50/60 Hz (± 0.05 %), configurable
Output waveform	true sine, Thd < 2.5 % under standard conditions
Continuous power at 25 °C / 77 °F, cos phi 1	1600 W
Max. peak load	3000 W
Max. efficiency	≥ 90 %
Max. ripple on DC (battery at full load)	< 5 %
No-load power consumption on DC (ON/inverter OFF/OFF/energy saving)	9 W / 0.1 W / 0 W / 0.5 W
Parallel configuration	no
3-Phase configuration	no
Synchronise with mains/generator	yes

Specifications Battery Charger
Input voltage range	180-265 V
Max. input current	4.5 A
Max. charge current at 25 °C / 77 °F	60 A at 14.25 V, adjustable
Secondary charger output voltage	12 V
Secondary charger output current	5 A
No-load power consumption on AC	< 15 W
Battery temperature sensor	yes, included
Battery voltage sense	automatic compensation

Specifications Transfer System
AC input 1	50 A (25 A switched, to short break output)
AC output 1	25 A (short break output)
AC output 2	50 A (power output)
AC input fuse	yes, resettable
Transfer speed	half seamless (25 ms max., 10 ms typical)
Transfer voltage range	180-265 V
Transfer frequency range	45-65 Hz

General Specifications
Display/read-out	LED display
Dimensions, hxwxd	371 x 318 x 143 mm 14.6 x 12.5 x 5.6 inch
Weight	7.8 kg 17.2 lb
Approvals	CE, ABYC, E4

Technical Specifications
Charge characteristic	3-step+ (IUoUo, fully automatic), Equalize
Battery types	AGM/gel/MLI/flooded/spiral/traction
Recommended battery capacity	~ 120-360 Ah (based on gel batteries, may differ for other types)
Ground relay	yes, configurable
Temperature range (ambient temp.)	-25 °C to 60 °C, derating > 25 °C -13 to 140 °F
Protection degree	IP23 (vertical mounting)
Safety class	IEC protection class I
Humidity protection	conformal coating, max. 95 % relative humidity, non condensing
Protections	over temperature, overload, short circuit, high/low battery voltage
Cooling	maintenance-free vario fans
Power Assist	yes
MasterBus compatible	yes, in combination with a MasterBus Combi Interface
