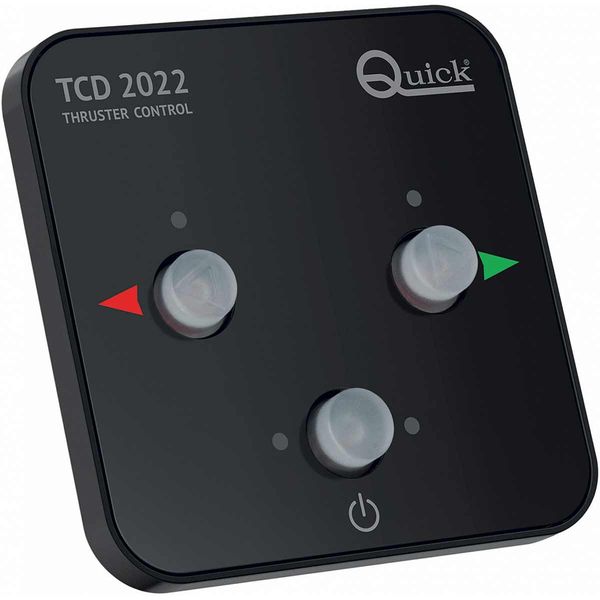

QUICK TCD2022 THRUSTER PUSH BUTTON CONTROL MK2

Quick TCD2022 Thruster Push Button Control Panel Mk2

Replaces	Quick FNTCD2022000A00
Brand	Quick
Model	TCD2022
Voltage Description	12V & 24V DC (9V - 31V DC)
Amps Description	Capacity of thruster commands: 4A max, Absorption at rest: 10mA
Approvals	EN 60945 - FCC Title-47 Part-15 Subpart-B Class-B
Height Description	Overall: 21.2mm (27/32"), Panel: 6.2mm (1/4"), Behind Panel: 15mm (19/32")
Width	74mm (2-29/32")
Depth	74mm (2-29/32")
Weight	80g (0.17 lb)
Operating Temperature	-20°C to +70°C
Rating	IP66 (excluding back of panel which is IP20)
Diameter Description	Cut Out: 61mm (2-13/32")
