12/75-3 MASTERVOLT CHARGEMASTER PLUS

12/75-3 MASTERVOLT CHARGEMASTER PLUS

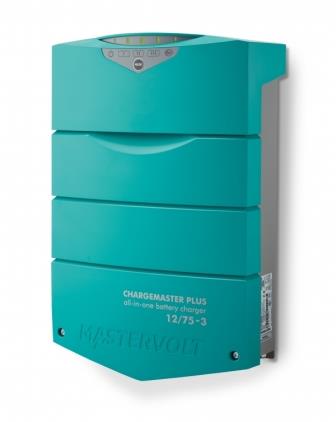

Mastervolt 12/75-3 Chargemaster Plus


General specifications
Nominal output voltage 12 V
Max. charge current per output 75 A
Smart In-/Output output voltage 12 V
Smart In-/Output output current 5-40 A (adjustable)
Smart In-/Output input current max. 40 A
Max. AC current (230 V / 120 V) 6.5 A / 13 A
Total charge current 75 A at 14.4 V
Number of battery outlets 3 (max.)
Battery capacity range 320-800 Ah
Nominal input voltage 120/230 V (80-275 V), 50/60 Hz
AC connection screw terminals, suitable up to up to 6 mm²
Power supply mode yes
Display/read-out LED display
Dimensions, hxwxd 384 x 250 x 127 mm
15.1 x 9.8 x 5.0 inch
Weight 5.9 kg
13.0 lb
Approvals CE, ABYC, UL1236, SAE J1171, ISO 8846, CEC/DOE, RCM/C-Tick

Our price (Ex VAT) £798.00

PART NUMBER M44310750
