12/35-3 MASTERVOLT CHARGEMASTER PLUS

12/35-3 MASTERVOLT CHARGEMASTER PLUS

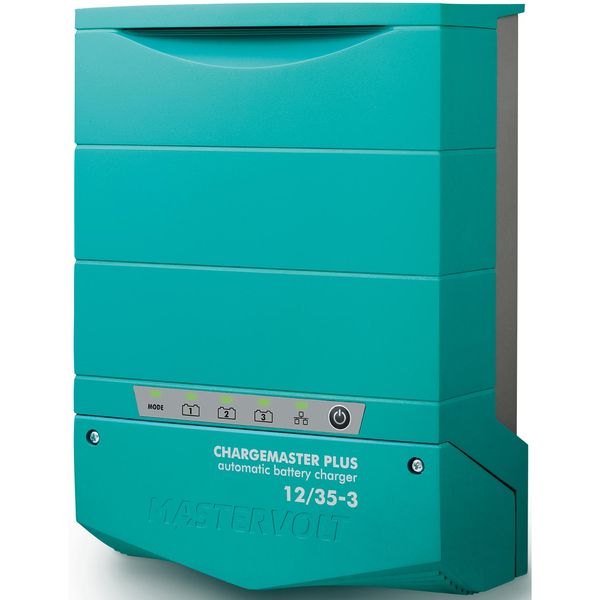

Mastervolt Chargemaster Plus 12/35-3


Communication & monitoring
Communication interfaces MasterBus, CZone, NMEA2000

General specifications
Nominal output voltage 12 V
Max. output current primary output 35 A
Total charge current 35 A at 14,25 V
Max. AC current (230 V / 120 V) 2.5 A / 5.0 A
Number of battery outlets 3 (max.)
Battery bank size 140-350 Ah
Nominal input voltage 120/230 V (80-275 V) 50/60 Hz
Power supply mode yes
Galvanic isolation yes
Display/read-out LED display
Dimensions, hxwxd 291 x 210 x 105 mm
11.5 x 8.3 x 4.1 inch
Weight 2,5 kg
5.5 lb
Compliance CE, CEC, DOE, ABYC, UL1236, cULus, SAE J1171, ISO 8846, ACMA

Our price (Ex VAT) £423.95

PART NUMBER M44310355
