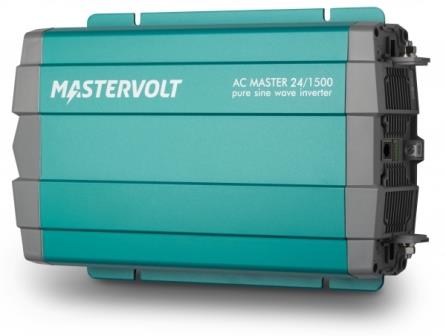

24/1500 MASTERVOLT AC MASTER INVERTER ( with UK SOCKET)

24/1500 MASTERVOLT AC MASTER INVERTER ( with UK SOCKET)

Mastervolt AC Master Inverter 24/1500 230V
FITTED with UK SOCKET


General Specifications
Output voltage 200/220/230/240 V – 50/60 Hz (selectable)
Output waveform true sine
Nominal battery voltage 24 V
Recommended battery capacity ≥ 80 Ah
Continuous power at 25 °C / 77 °F, cos phi 1 1500 W
Continuous power at 40 °C / 104 °F, cos phi 1 1500 W
Peak load (1 min.) < 1730 W
Peak load (1 s) < 2650 W



Galvanic isolation yes
Efficiency 94 %
Display/read-out LED indication: battery voltage, load level, status
Alarms potential free alarm contact
Dimensions, hxwxd 248 x 421 x 83 mm
9.8 x 16.6 x 3.3 inch
Weight 4.2 kg
9.3 lb
Approvals CE, E-mark, RCM

Our price (Ex VAT) £587.00

PART NUMBER M28221500
Ask a question about this product

Description
