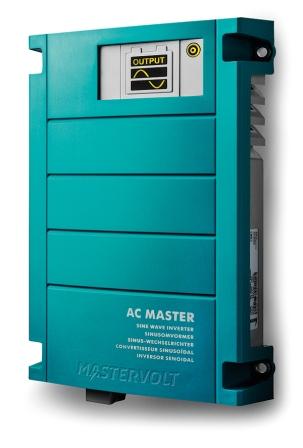

12/500 MASTERVOLT AC INVERTER

Mastervolt 12/500 AC Inverter
Output Voltage : 230 V - 50 Hz (± 0.1%)
Output Waveform : True Sine
Nominal Battery Voltage : 12 V
Recommended Battery Capacity : ≥ 100 Ah
Continuous Power at 25 °C / 77 °F, cos phi 1 500 W
Continuous Power at 40 °C / 104 °F, cos phi 1 400 W
Peak Load: 800 W
AC Connection : Universal
Efficiency : 90 %
Display/read-out : LED display
Alarms: 4 Alarm Modes
Dimensions, hxwxd
210 x 130 x 60 mm
8.3 x 5.1 x 2.4 inch
Weight : 1.22 kg (2.7 lb)
Approvals : CE, E-mark, ABYC A-31
