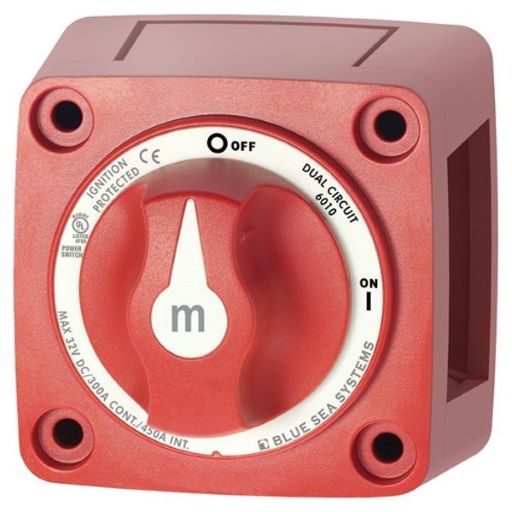

6010 BLUE SEA M-SERIES BATTERY SWITCH

6010 BLUE SEA M-SERIES BATTERY SWITCH

Blue Sea 6011 M-Series Battery Switch

Our price (Ex VAT) £53.00

PART NUMBER 8-26010
Ask a question about this product

Description

Specifications
Switch Type  Dual Circuit
Color Red
Switch Positions 2
Battery Combine No
Alternator Field Disconnect  No
Maximum Voltage 32V DC
Stud Size 3/8"
Terminal Stud Torque 120 in-lb (13.56 Nm)
Continuous Rating  300A
Intermittent Rating  450A (5 min)
Cranking Rating 30 sec  675A per circuit
Battery Inputs 2
Cable Clearance For 4/0 AWG Cables 1.12in (28.45 mm)
Cable Size to Meet Ratings 4/0 AWG (120mm²)
Mounting Holes Accept #10 Screw
Stud Material Tinned Copper
Stud Torque 120 in-lb (13.56 Nm)
Terminal Stud Size 3/8" - 16 (M10)
Weight 0.80lb (0.36 kg)
Weight 0.80lb (0.36 kg)
