6011 BLUE SEA MINI BATTERY SWITCH DUAL CIRCUIT PLUS

Blue Sea MINI Battery switch DUAL CIRCUIT PLUS
Make before break contact design allows switching
between battery banks without power interruption
Ignition protectedâsafe for installation aboard gasoline powered boats
Case design allows surface, front panel, or rear panel mounting
Isolating cover with snap-on sections protects rear contacts

Our price (Ex VAT) £55.76

PART NUMBER

8-26011

Ask a question about this product

Quantity

Description

Blue Sea MINI Battery Switch
Switches isolated battery banks to all loads or combines battery banks to all loads
Make before break contact design allows switching between battery banks without power interruption

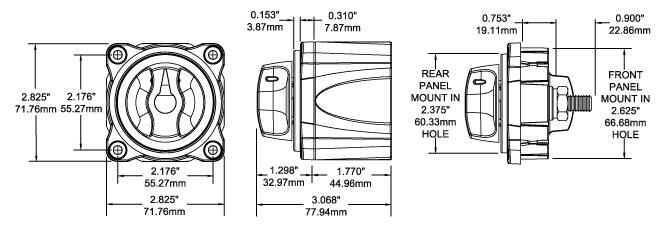

DIMENSIONAL DRAWING

Cranking Rating: 10 sec.	1,000 Amps
Intermittent Rating: 5 min.	450 Amps
Continuous Rating	300 Amps
Maximum Voltage Rating	32 Volts DC
Terminal Stud Size	3/8"-16 (M10)
Terminal Stud Torque	120 in-lb (13.56 N m) max.
Mounting Holes	Accept #10 Screw
Cable Size to Meet Ratings	4/0 AWG (95mm )
Cable Clearance For 4/0 AWG Cables	1.12" (28.4mm)
Weight Lb (Kg)	0.80 (0.36)
