12/2500 MASTERVOLT AC MASTER INVERTER 230V

12/2500 MASTERVOLT AC MASTER INVERTER 230V

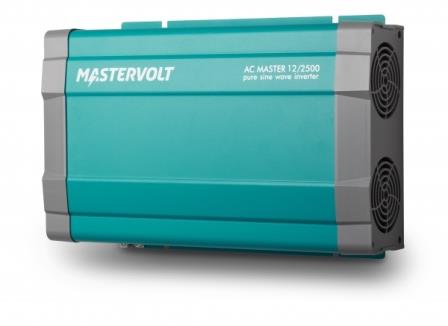

Mastervolt AC Master Inverter 12/2500 ( 230V )


General specifications
Output voltage 230/240 V – 50/60 Hz (selectable)
Output waveform true sine
Nominal battery voltage 12 V
Recommended battery capacity ≥ 270 Ah
Continuous power at 25 °C / 77 °F, cos phi 1 2500 W
Continuous power at 40 °C / 104 °F, cos phi 1 2500 W
Peak load (3 s) < 3000 W
Peak load (< 0.2 s) < 4000 W
AC connection hardwired + plug connection EU (Schuko), with UK plug (code 28212500) or NZ/AU plug (code 28412500)
Galvanic isolation yes
Efficiency 88 %
Parallel configuration yes, up to 15 units
3-Phase configuration yes, 3 units
Display/read-out LED indication: battery voltage, load level, status
Alarms potential free alarm contact
Dimensions, hxwxd 283 x 436 x 128 mm
11.1 x 17.2 x 5.0 inch
Weight 8 kg
17.6 lb
Approvals CE, E-mark, RCM

Our price (Ex VAT) £1153.69

PART NUMBER M28212500
Ask a question about this product

Description
