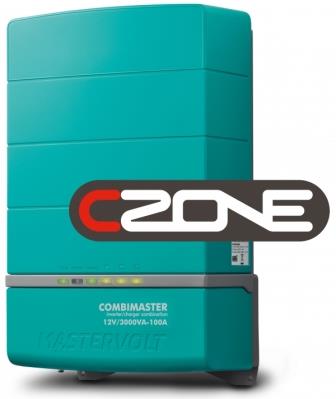

12/3000-100 MASTERVOLT COMBIMASTER INVERTER/CHARGER 230V

12/3000-100 MASTERVOLT COMBIMASTER INVERTER/CHARGER 230V

Mastervolt 12/3000-100 Combimaster Inverter/Charger 230V

Specifications sine wave inverter
Nominal DC voltage 12 V (10.2–16 V)
Output voltage 230 V
Output frequency 50/60 Hz (configurable)
Output waveform true sine
Continuous power at 40 °C / 104 °F, cos phi 1 3000 VA / 2600 W
Peak power (30 sec) 4500 VA / 3900 W
Surge power (5 sec) 6000 VA / 5200 W
Max. efficiency 93 %
Battery no-load power consumption 30 W (on mode) / < 1 mA (off mode)
Energy saving mode consumption 10 W
Synchronise with mains yes

Specifications battery charger
Input voltage range 170-280 V
Max. input current 10 A (adjustable)
Max. charge current at 40 °C / 104 °F 100 A at 14,25 V (configurable)
Battery temperature sensor yes, included
Battery voltage sense automatic compensation

Our price (Ex VAT) £1223.66

PART NUMBER M35013000
