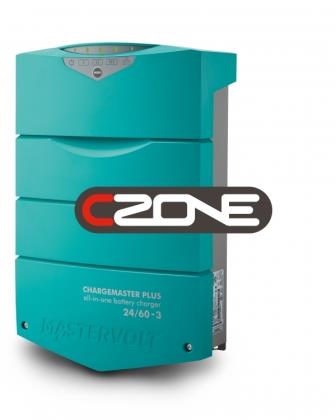

24/60-3 MASTERVOLT CHARGEMASTER PLUS C-ZONE

24/60-3 MASTERVOLT CHARGEMASTER PLUS C-ZONE

Mastervolt Chargemaster Plus


Communication & monitoring
Communication interfaces MasterBus, CZone, NMEA

General specifications
Nominal output voltage 24 V
Max. charge current per output 60 A
Smart In-/Output output voltage 12 or 24 V
Smart In-/Output output current 5-10 A at 12 V; 5-20 A at 24 V (adjustable)
Smart In-/Output input current max. 20 A at 24 V
Max. AC current (230 V / 120 V) 10.2 A / 20.4 A
Total charge current 60 A at 28.8 V
Number of battery outlets 3 (max.)
Battery capacity range 200-500 Ah
Nominal input voltage 120/230 V (80-275 V) 50/60 Hz
AC connection screw terminals, suitable up to up to 6 mm²
Power supply mode yes
Display/read-out LED display
Dimensions, hxwxd 384 x 250 x 127 mm
15.1 x 9.8 x 5.0 inch
Weight 5.9 kg
13.0 lb
Approvals CE, ABYC, UL1236, SAE J1171, ISO 8846, CEC/DOE, RCM/C-Tick

Our price (Ex VAT) £876.22

PART NUMBER M44320605
