24/40-3 MASTERVOLT CHARGEMASTER PLUS (24v 40A)

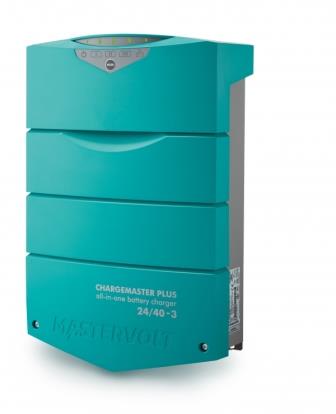

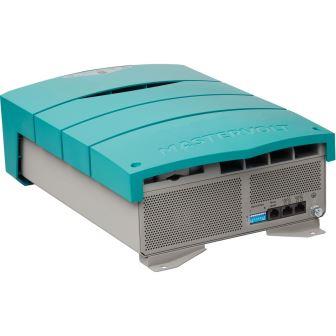

Mastervolt Chargemaster Plus

General specifications
Nominal output voltage 24 V
Max. output current primary output 40 A
Smart In-/Output output voltage 12 or 24 V
Smart In-/Output output current 5-10 A at 12 V; 5-20 A at 24 V (adjustable)
Smart In-/Output input current max. 20 A at 24 V
Total charge current 40 A at 28.8 V
Max. AC current (230 V / 120 V) 6.8 A / 13.5 A
Number of battery outlets 3 (max.)
Battery bank size 160-400 Ah
Nominal input voltage 120/230 V (80-275 V) 50/60 Hz
AC connection screw terminals, suitable up to up to 6 mm²
Power supply mode yes
Galvanic isolation yes
Display/read-out LED display
Dimensions, hxwxd 384 x 250 x 127 mm
15.1 x 9.8 x 5.0 inch
Weight 5.9 kg
13.0 lb
Compliance CE, ABYC, UL1236, SAE J1171, ISO 8846, CEC/DOE, RCM/C-Tick, RMRS, RRR



Our price (Ex VAT) £850.00

PART NUMBER M44320405
Ask a question about this product
