24/80-2 MASTERVOLT CHARGEMASTER PLUS

24/80-2 MASTERVOLT CHARGEMASTER PLUS

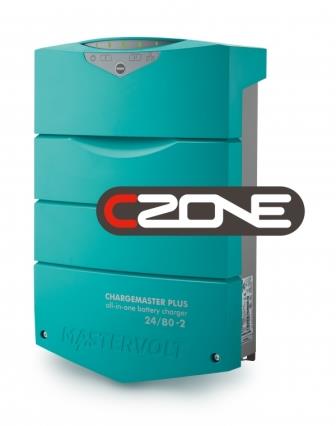

Mastervolt 24/80-2 Chargemaster Plus CZone


General specifications
Nominal output voltage 24 V
Secondary output voltage 14.25 /28.5 V (12/24 V)
Max. output current primary output 80 A
Max. output current secondary output 5-15 A at 12 V / 5-20 A at 24 V (adjustable)
Total charge current 80 A at 28.8 V
Max. AC current (230 V / 120 V) 11.75 A / 23 A
Number of battery outlets 2 (max.)
Battery capacity range 280-700 Ah
Nominal input voltage 120/230 V (80-275 V) 50/60 Hz
AC connection screw terminals, suitable up to up to 6 mm²
Power supply mode yes
Galvanic isolation yes
Display/read-out LED
Dimensions, hxwxd 384 x 250 x 127 mm
15.1 x 9.8 x 5.0 inch
Weight 6.3 kg
13.9 lb
Approvals CE, ABYC, UL1236, SAE J1171, ISO 8846, CEC/DOE, RCM/C-Tick, RRR




Our price (Ex VAT) £1211.96

PART NUMBER M44320805
