24/30-3 MASTERVOLT CHARGEMASTER PLUS BATTERY CHARGER

24/30-3 MASTERVOLT CHARGEMASTER PLUS BATTERY CHARGER

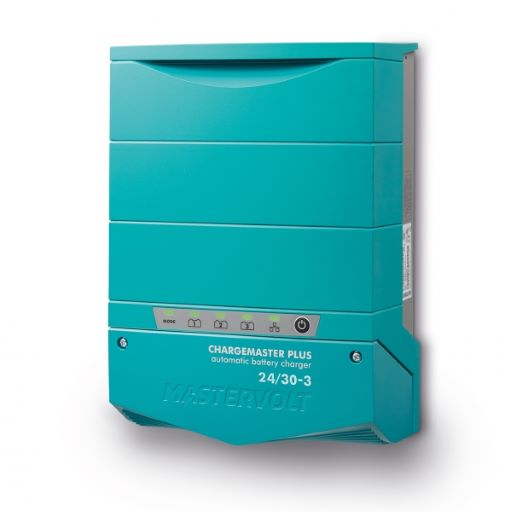

Mastervolt 24/30-3 Chargemaster PLUS Battery Charger


Communication & monitoring
Communication interfaces MasterBus, CZone, NMEA2000

General specifications
Nominal output voltage 24 V
Max. output current primary output 30 A
Total charge current 30 A at 28,5 V
Max. AC current (230 V / 120 V) 4.2 A / 8.6 A
Number of battery outlets 3 (max.)
Battery bank size 120-240 Ah
Nominal input voltage 120/240 V (80-275 V) 50/60 Hz
Galvanic isolation yes
Display/read-out LED display
Dimensions, hxwxd 291 x 210 x 105 mm
11.5 x 8.3 x 4.1 inch
Weight 2.5 kg
5.5 lb
Compliance CE, CEC, DOE, ABYC, UL1236, cULus, SAE J1171, ISO 8846, ACMA

Our price (Ex VAT) £638.00

PART NUMBER 44320305
